Testing the waters with AWS and CI/CD

While I was preparing for my solutions architect associate exam, I had the idea to eventually use the knowledge and the hands on experience I would gain from studying for the certification to deploy my website over the cloud and automate every bit of the integration and deployment process. The idea was there, but it lacked any actual substance, and for some time, it remained just an idea. That is until I came across the cloud resume challenge by Forrest brazeal.. This challenge has definitely put every bit of what I studied and practised in place and definitely the kind of challenge I needed to atleast get my head around a lot of things, AWS and outside. So without further ado, lets get in to what I did and how I went about the phases of this project.

Time Taken

Since there's a lot of moving parts in the project, it definitely took me a lot of time to get all the parts working together in sync. It took me about 6 months including the certification preparation (which helped me a lot with the challenge).

That value might seem like a lot but it takes into account the time I put into the front-end code and design, learning the principles and working of devops tools such as Docker and Gitlab CI/CD since I went with that, It's only natural to consider the time taken to build it as well.

Note

The write-up is fairly long as I try to explain the ideas and the implementation process I went with. So please do take your time in order to go through it. It's also all in here so don't worry, I will not be redirecting you to a follow up article.

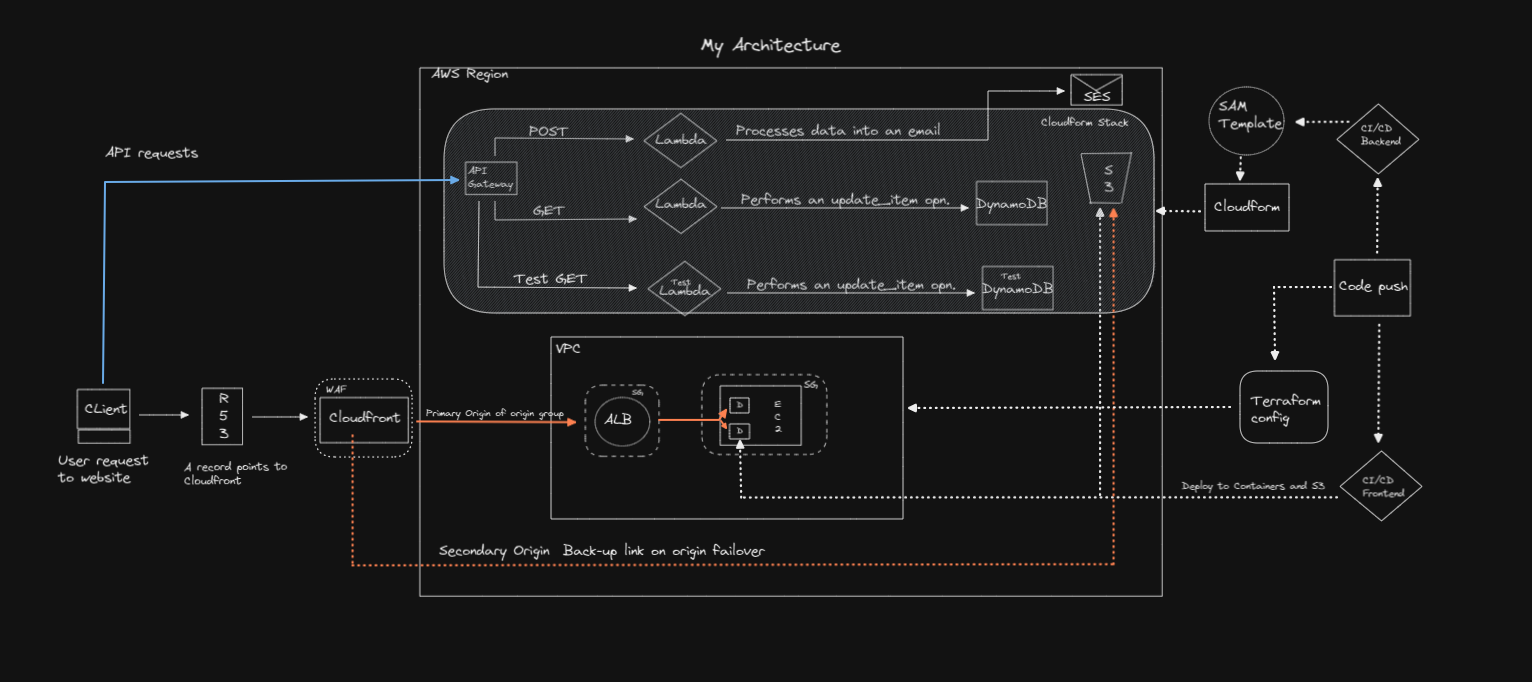

Architecture

I added a couple extra services in there, modified it to play around a little more. The core concept of the challenge still remains in place though and that was always the first thing on my mind. The serverless part(the cloudformation stack) also consists of an extra lambda function, api and a Dynamodb table for testing purposes. And as we go on with this write-up, I will do my best to explain what each part of this architecture hopes to achieve.

Certificate

Starting off with the certificate, I went for the solutions architect associate and thoroughly enjoyed the coursework and the journey towards preparing for my exam.

The bits of experience I got from doing some labs and demos as part of my study definitely helped me get a sense of familiarity with the console and services when I started with my project. So that's ticked off.

Website

To kick things off, I decided to go ahead and implement this challenge with the website that I already had built prior to coming across this challenge. I built my website using HTML, CSS and ReactJS, a front end JS framework to build smooth front end applications and therefore already had the front end parts ready to move on to the next parts of the challenge. I did come back to polish it further, taking off from where I had left and since the codebase is a bit old, I do intend on coming back and rebuilding some parts of the application and cleaning it up a little bit. Still though, a working front end website and I was good to go next.

Using EC2, Containers and S3

The first step into the cloud... and the work begins! The idea is to deploy your static website to S3 and manage the contents of the bucket yourself. S3 is a great service to use in order to serve your static content. I did heed to the challenge's instructions to deploy the website over S3 as a static website endpoint. But as with the previous step, I did take some inspiration and decided to do something further. This was something I purely did for the sake of experimentation and working with more services and tools to really immerse myself in with the hands-on experience of working with cloud and devops tools.

So...What did I do?

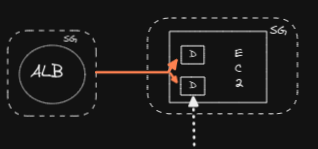

I decided to dockerize my front end application and host the container instances on an EC2 instance. This helped me learn the fundamentals of what docker is, why its so coveted and popular in the industry and gain a working idea into the mechanisms of containerizing applications. I also decided to use my EC2 instance instead of a container orchestration service such as Kubernetes or ECS to keep things a little bit simpler (ironic I know) and because there's about 750 hours of free EC2 instance running time per month. I also put a little bit of my Linux knowledge and skills to use. Running containers on a self managed EC2 instance is very possible and was definitely extremely fun to work with. Initially, I had provisioned this EC2 instance with Terraform and tried to maintain it with Terraform but I'd always make the mistake of going to the console and changing things instead of doing it on my terraform file (more on that later). Using the Terraform file however, I had bootstrapped a user script to install docker as soon as my EC2 instance was provisioned and ideally, I would also like to attach a auto-scaling group policy to this Instance group which would only provision another single instance if my current one were to stop functioning as intended (The values of Min., Desired, and Max Capacity will be 1), since one of the main ideas behind doing this project was to keep it as cheap as possible. The docker containers are started as part of my CI/CD pipeline configuration file and there will be more on that later as well.

Benefits? And what about the ALB?

From an architecture standpoint, there is not much benefit for a static website such as mine to be containerized and put on an EC2 instance. Containerization shines when you have to host multiple applications, dynamic in nature, all having different build and environment requirements but also needing a shared os amongst them. Docker really shines there. It really did teach me the benefits of containerizing applications even if they had very diminished returns on my application specifically. The load balancer is an Application load balancer and they are free to use for 750 hours per month as well. Application load balancers are also great because they are 'intelligent', being able to use layer 7 logic to route traffic to your instances. Application load balancers (along with Network load balancers) can also support load balancing across different ports on the same instance. This was extremely beneficial for my docker containers and I was able to create a target group with my containers and the alb would load balance traffic across them and monitor their health status. I could have gone with a NLB as well, but in the future, I do intend on using my architecture to host multiple applications with different request URL's so an ALB is preferred for that.

CloudFront

CloudFront is the CDN service of AWS. It is important to use cloudfront for the added advantages of speed and performance, which are made possible due to cloudfront's edge location caching. It is also beneficial to use cloudfront in order to make it the single point of entry to your services and associate a custom domain to it. This secures access to your resources and also enables you to leverage additional cloudfront features such as using only HTTPS and associating SSL certificates to enable HTTPS communication by default between the users and cloudfront and between cloudfront and its origins. Note that communication between cloudfront and S3 still happen over HTTP.

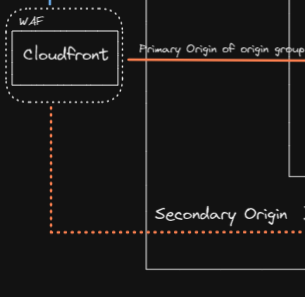

As I leveraged the use of both an Application Load Balancer and S3, I decided to create an origin-group in cloudfront to enable origin failover in the event my EC2 instance or its availability zone were to go down. S3 would be the backup and would continue serving content to users. WAF isn't free (and I break the promise of keeping it free) but it is still extremely cheap to use and identifying the rule set you want to use will definitely help with defending against attacks and malicious traffic.

DNS

Bought a domain for myself, again this is a one-off purchase you make for the year. Created a couple custom dns subdomain alias records for other AWS services such as S3 and ALB, makes it easier to read and use them to define your cloudfront origins. It's also required in order to associate your services with an SSL/TLS certificate (I could be wrong though, not entirely sure). ACM provides a free SSL/TLS certificate if you request one.

Javascript

I built the website with the use of ReactJS as already mentioned, but excluding ReactJS, my code does include some vanilla javascript and as defined in the challenge, a visitor counter functionality was implemented in the code (using react hooks). Along with the counter functionality, I also defined a form which would enable users to send me messages or contact me for anything. I added this as it was already part of my original website, but did not have the backend infrastructure and therefore decided to complete it together with the visitor counter functionality as part of this challenge as well.

Going through some documentation and tutorials again helped me refresh my knowledge in asynchronous JS, and it proved to be vital for this part as most of it revolves around the use of XMLHttpRequest() or the fetch() API if using React, along with promises and resolutions. This medium article by James Beswick helped me a lot in understanding how to integrate the concepts into one single entity and overall, was a great read.

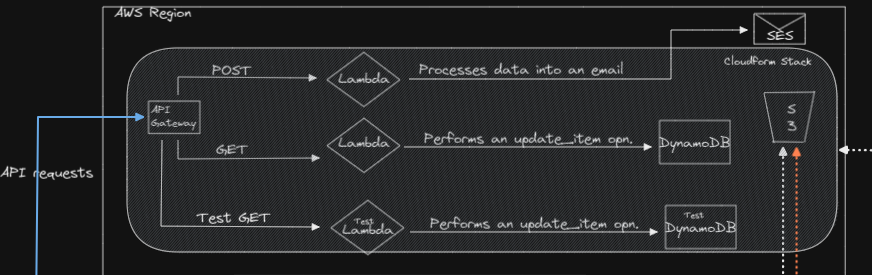

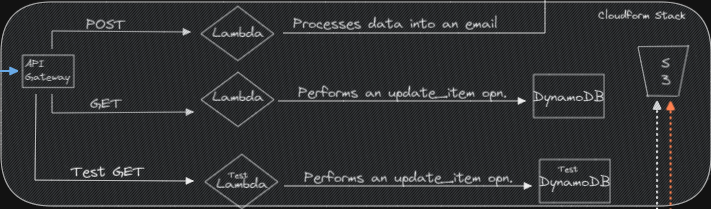

The Serverless Backend

To me, this was the part of the challenge I had the most difficulty navigating in. I don't have much developer knowledge or experience and most of my knowledge in python comes from basic python scripting from a networking perspective. And as for my front end code, well most of it is browser-based Javascript and ReactJS and while nodeJS uses the same language, by no means was I experienced with it other than using npm. Due to those limitations, this was also the part I had to seek the most help for. Primarily on writing the functions, coming up with the logic and also understanding the integration of lambda functions with API gateways. I definitely did not explore these services as much as part of my exam preparation and the gaps in knowledge and implementation ideas were pretty apparent in the beginning. Nonetheless, I decided to take it on since it was a chance to learn something new and a challenge look forward to and as I moved deeper into this part of the challenge, I definitely started enjoying it a lot more and the services started becoming a lot clearer to me.

API Gateway

Starting off with API gateways, and let's just put it this way, things did not kick off well. I thought it would be slightly easier since I already had some knowledge in working with API calls with some of my front end mini projects but working with the API gateway is a whole different beast.

I hadn't really created an API myself before and that was an interesting process to work with. Also because this was an unfamiliar territory to me, I had decided to play around with the console once and implement the functionality manually, but as part of the challenge, SAM is required to be used and therefore I did redo all of it through a SAM template (more on this in the IaC section). I created 3 api's in total, 2 for my Update table function and one for my Email function. The reason I created 2 api's for the former was due to my testing strategy, which will be explained more in detail in the testing section.

This service was definitely confusing working with. From being able to detect cors errors, understanding how request and response headers work, differences between proxy, non-proxy and mock integrations, there's a whole lot I learn with this challenge and really glad I decided to play around with it. Because of my lack of understanding, this part of the challenge definitely took a lot of time trying to debug errors with the help of a lot of stackoverflow. I also used external testing API's such as Postman but the API testing tool inbuilt into API gateway proved to be extremely useful in trying to understand why I was getting http 400 or 500 errors. I also used Postman to test my post api specifically, but I definitely liked the API gateway testing feature better due to the logs it provides you with. Really thankful I had decided to take this part of the challenge on.

Lambda

Next comes lambda functions, this is where your actual developer or coding knowledge comes into play as you write the functions and hope for a proper execution of the functions as well. I was familiar with lambda itself, but where I had to write the code, I had to refresh some of my python knowledge and definitely browse through a lot of stackexchange stackoverflow to gain an idea on how I would go about it.

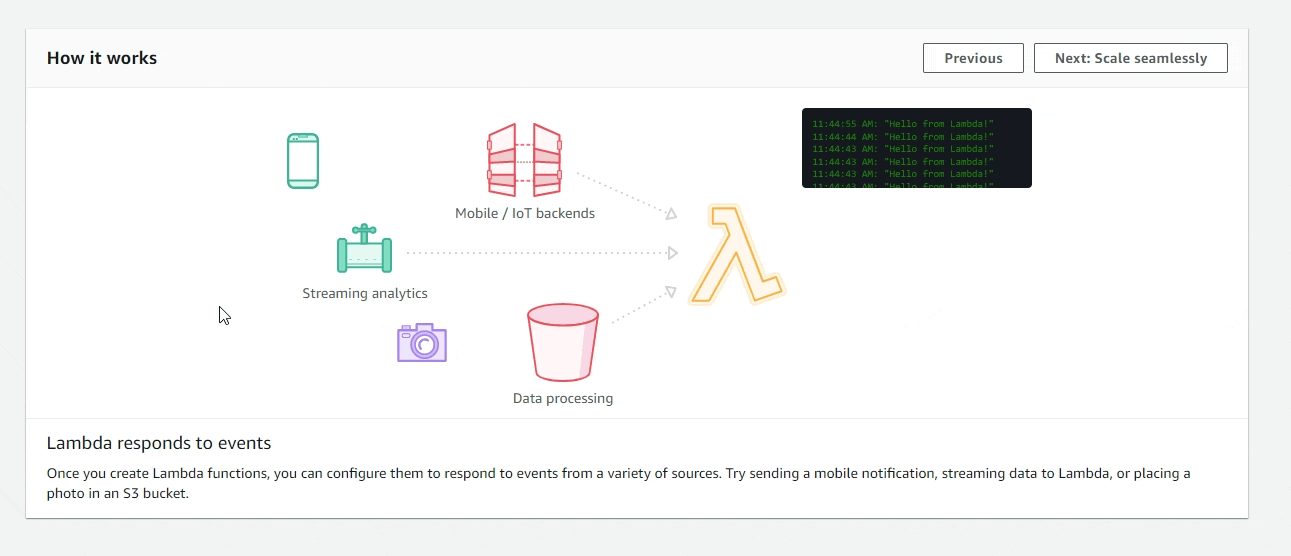

This is a nice and intuitive way to get a very high level overview of AWS lambda on the console where you can sort of play around with the service and understand for yourself how it functions on the surface level.

Boto3 and nodeJS SDK

Boto3 is the SDK that you use with python in order to programmatically communicate with the AWS services. It's pretty neat and I started getting the hang of it while going through the boto3 documentation but there are some very basic confusions for newbies like me. For example I didn't really understand what the difference between boto3.client() and boto3.resource() was. Boto3.resource() was seemingly the easier to work with, it provides a high level abstraction of the services and so it's easier to use. Gaining a little bit of experience using boto3 was definitely integral in understanding how AWS SDKs interact with the services itself.

Using stackoverflow and this blog post by Chris Nagy , I was able to get a much better understanding how to work with AWS services such as Dynamodb and SES. Using functions defined in the boto3 library, you can manipulate dynamodb tables and perform the desired operations needed.

Similarly I had to use the nodeJS SDK for my nodeJS lambda function. With the help of this blog post by Marcin Wanago , I definitely had a bit of a better understanding working with nodeJS and building nodeJS lambda functions for my Email service. You process the incoming event object into an email body, pass it to SES and SES sends it to you using the details it got from lambda. Pretty neat. Great experience working with lambda, definitely had some frustrating moments but when you get the function working as intended, it's always a great feeling. Onwards we go!

SES and Dynamodb

SES (Simple Email Service)

Amazon SES is a simple email service that uses an amazon server to send emails to the email address that you have verified on the SES console. Simply go to the service and verify your email id and you're good to go. SES will forward any emails that it receives from my lambda function. There really isn't much else to say about SES, a relatively straightforward service which functions as intended.

Dynamodb

Dynamodb is a vast topic. It was interesting to work with it even if I probably explored very little of it. Had some prior knowledge on databases(SQL and NoSQL) and their features but my experience working with one was none. Working with it now, I do understand it a bit better from a hands-on perspective, though I do realise that I've only worked with one kind of a database here and even within this one kind, there's a lot to learn so I understand the amount of depth that is in such a topic. Still though, getting familiar with the schema, learning a lot about primary keys, indexing and why it's important that you have high cardinality etc, are all some of the things that you learn when working with dynamodb. Ofcourse, most of my interaction with dynamodb was through boto3 and some from the SAM template I wrote to define my dynamodb table. Overall, good experience and definitely got myself some basic experience working with dynamodb.

Testing

A very vast topic to cover, testing is a very important part of the DevOps product lifecycle. Initially, the tests were a bit of a weak point for me at the start as I wasn't exactly sure what kind of tests I should be integrating into my CI/CD pipeline for the frontend. All of that changed when I had to figure writing tests for my backend. Deciding between the different kinds of testing to do and which one applies the best to your code is important to identify. I don't think I did the perfect job when it came to identifying, but I'm happy with the testing scripts and process I came up with.

Beginning with the frontend, I read about the testing suite that comes pre-installed with create-react-app called jest , which is a testing library for JS and you can run tests with jest using the npm test command. Linter tests and npm test for my front-end were some of the kinds of tests I ran. Create-react-app comes with a predefined test component that you can use in order to test your frontend. I did replace the text and match it with my landing page so it would check the text on the landing page to make sure my frontend loaded properly. Nothing too hard, just using what I had.

For the backend, things were slightly more complex. I wanted to figure what kind of test I wanted to implement. The reference provided in the Cloud Resume challenge proved to be a good start for python based testing. It gave me a good idea on what I needed to do. Now, there were two possible ways I could have gone about it. One way was to create an integration test for a local "mock" environment that I would create. This approach seemed like a good way but I also thought about creating a testing environment directly in the cloud. This article by Fernando MC provided a very good comparison and is where I originally drew the idea of testing in the cloud from. The best advantage of testing in the cloud is that it mimics the real environment one to one and because serverless resources are usually so cheap, it really makes it worth it to test it on the cloud. And thats what I decided to do for my visitor count testing. I created a demo environment, another lambda function, another API, and another Dynamodb table so my tests wouldn't change resource values on the real one. Finally it ended up perfectly as I expected it to be. And as for the testing logic, I decided to compare the value in the table between two successive lambda invocations and operations. If the second response happened to be 1 higher than the previous one, then it was working as intended. This video on youtube explains the logic and is extremely well put. And that's about it for my python test. It stands somewhere between a unittest and an integration test, but it works as intended and I'm happy with the final script.

As for my node function that processes an email, I didn't see the need to create a demo/test environment. I decided to use jest again in order to test my code and followed the documentation in writing a jest test. After meddling around a little with my function and trying to test async code, I found a decent logic to work with, and one that sends me test emails if a test is successful. Since promises can take a little time to resolve, it's important to use a callback or just a return statement if using the async/await syntax which was what I used. I then compared the response body with the test body and if it was the same, then the email was a success. Similar to the above, I'd consider it between a unittest and an integration test, though I'm leaning more towards the former.

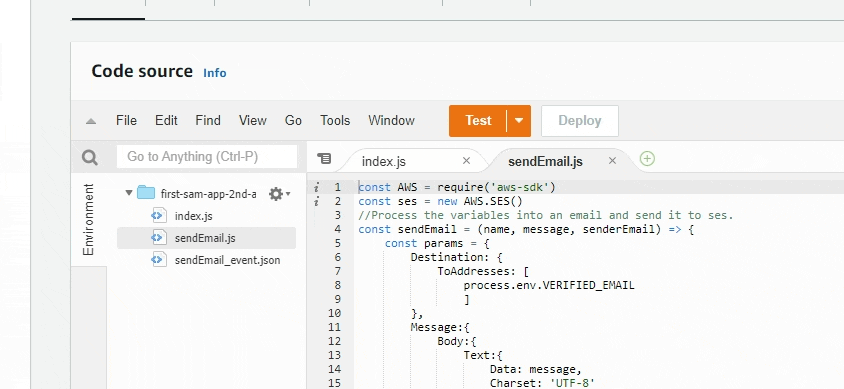

Lambda also has a testing feature that you can use in order to test your functions in the console. Simply create a test event and define a test object to use for the test. Lambda will do the rest. Other than that, there are local SAM tests that I ran for my backend with the SAM local invoke and SAM local API commands to test my lambda functions and API urls respectively. You can pass the test objects either using the echo command or you can create a test object locally like I did, and pass it in the SAM local invoke command. Overall, learning testing was extremely interesting. There's so many ways you could go about it and I'm sure there's more optimally written tests than mine, but for the start, it was a great learning experience.

Tooling

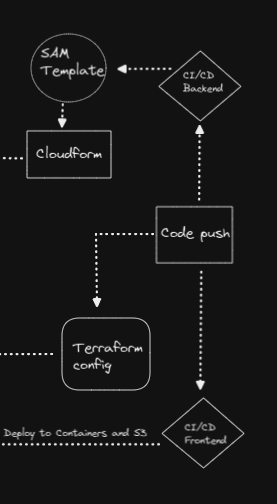

Finally, the last section of this write-up. This section mainly talks about the tools and the process implemented to fully automate whatever I had done so far. It's a very important part of what Devops is about and how it makes Devops principles come to life in action. One of the most fun parts of the project personally. Lets go.

Version Control

Used GIT for version control and used Github and Gitlab as my remote repositories. Initially, I had my frontend code stored in a github repository but since I decided to use Gitlab for my pipeline workflow, I decided to create and sync my local, github and gitlab repositories. Version control is awesome, using git is great and extremely powerful if used right.

Infrastructure as Code (IaC)

This one is important for a lot of reasons. Infrastructure as code or IaC is a way to define your resources and manage their configurations through code. The challenge mentions the use of AWS SAM in order to provision your serverless backend and manage their configurations as well. I had studied a bit about cloudformation and creating stacks and defining templates, but SAM makes the whole process so much easier and so much smoother too, SAM being an extension of cloudformation. Terraform has also played an important role in the development of my application infrastructure, since terraform was the first tool I used before deciding to use both terraform and AWS SAM as part of my project.

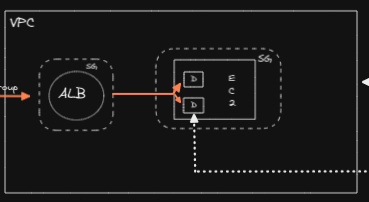

But that's the serverless backend right? What about the EC2 instance and the ALB that I had defined earlier? And how did I go about it?

It's a bit interesting really. So Initially, the plan was to execute it all using terraform. Terraform is very similar to cloudform and so it wasn't hard to get into it. I had a lot of fun learning the basics of terraform, went through hashicorps documentation and tutorials just to get myself familiar with the language and commands. I had defined both my ALB and my EC2 instance as part of my Terraform file. However, using terraform right off the bat was a bit overwhelming for me (even just the 2). It wasn't that terraform was extremely hard or so, personally I believe it had more to do with the timing of using terraform in my project. I started implementing IaC quite early into the project as I believed defining every bit of it in my terraform file would eventually make it easier to track...which is true in a way but I was lacking in knowledge with some of the service configuration and without going through the console and playing around with the services for sometime, It was hard to know what I exactly needed. Afterall, options give you ideas and going through them in the console definitely gave me an idea of what was required.

Terraform modules and in general, service templates exist for every IaC tool out there. These modules or templates give you a baseline configuration and all the configuration options you will ever need for a service. This was of great help when I started and definitely started making the transition to IaC easier. Even though templates provide a great way for you to understand whats required, I think the best way is to first provision every bit of infrastucture you'll need via the console. Configure them via the console as well. Once you have a working model, abstract them to you preferred choice of IaC tool and then the whole process is a lot easier to understand.

Once I had sufficiently played around in the console, it was time to "destroy" what I had created and reinitialise or redeploy the same infra. using terraform. This time, I introduced the use of Terraform very slowly. I Identified the use case of terraform in my project and then re-provisioned my server based vpc resources such as my EC2 instance and my application load balancer, along with their respective security groups. Learning to use the modules and templates in the documentation was key to understanding how terraform works. My Terraform code for EC2 instance also included a boot script/user script which installs docker into the instance during its first boot only. This is a feature added to employ the use of docker containers within my EC2 instance on automatic re-initialization and replacement of my EC2 instance. Currently no auto scaling group launch configuration exists so reboots are manual. This feature is part of future terraform code to manage ASG along with defining user scripts to auto scale and replace unhealthy EC2 instances with healthy ones, pre installed with the docker engine. Serverless resources were managed via AWS SAM as it's a great native AWS feature to manage serverless stacks.

Update-

I decided to abstract my default AWS resources such as VPC, Subnet groups, Route table, Internet Gateway and so on, into Terraform as well. Terraform provides a great command called terraform import, which enables you to manage existing resources on your cloud provider through terraform by abstracting it's state into your terraform code. This was a game changer in being able to manage my already existing infrastructure on terraform. With this out of the way, Further integration of AWS SAM and terraform will come into play (Read more about SAM below).

But what's the benefit in that?

I'll be honest, I still couldn’t quite understand the benefits of terraform, SAM or IaC in general after all the playing around as well. I was lacking an idea and the understanding as to why they are considered so important when they are tedious to write and one small mistake can break your deployments. But a key component in getting things right is to learn from previous errors and when I decided to re-provision my resources and my serverless backend using Terraform (again) and SAM, I could see the benefits coming.

The whole thing hit me like a eureka moment once I had finished defining my SAM template. I could basically take this template onto any AWS account, anywhere and get the required resources, configurations, policies etc running instantly as soon as it is deployed. It started making a lot more sense to me once I saw how it was maintained as code and how it could benefit organisations a lot because the complexity of maintaining organisational infrastructure is probably 20x more complicated than mine. It’s also extremely portable, you can take them across cloud platforms as well (if using a cloud-agnostic IaC tool) and not just that, there are even CDKs for developers to begin with and manage infrastructure as code. It’s a great tool that started making much more sense to me once I had defined my template and thought about it in the grand scheme of things.

Coming back to my project, I want to wrap it up to make a bit of a TLDR here. I ended up using both SAM and terraform. Terraform currently maintains my "server" resources such as my EC2's configuration and my Application load balancer. Terraform is also not part of my CI/CD. SAM, on the other hand was slightly easier to learn, given it's easy to learn syntax. I think that is to be expected given that it is an extension of cloudform specifically for serverless resources. Learning both Terraform and SAM were crucial in understanding the concepts of IaC and its importance in the industry. Since some of my resources are still not part of IaC, I do intend on bringing them into the mix as well and so even this stage is ongoing and can be further extended to accommodate for all the resources used in my architecture. Eventually, my end goal is to maintain them either through terraform or SAM and that will take some tinkering to do.

CI/CD (Frontend)

The connector, Continuous Integration & Continuous Deployment(or Delivery if done manually). Later on in the challenge, but earlier in my development, this was genuinely one of the most exciting parts of the challenge. It's amazing how with the push of a button, all the changes you make locally will enable the running of a pipeline you built, responsibly delivering your code to your remote instances. Truly magnificent.

Now when I started this part, I wasn't looking at the tooling required in the challenge. As I mentioned, I had already begun with the process early on, building my pipeline file when I had a functioning EC2 instance running.

The challenge actually specifically asks us to use GitHub actions, but I realised it all a tad bit late and I had already begun working with Gitlab. Atleast they're both git right?... But on the more serious side, learning CI/CD was a challenge. Understanding the stages, understanding the jobs and not just that, understanding the architecture behind how pipelines actually deploy code are all vital to understanding CI/CD.

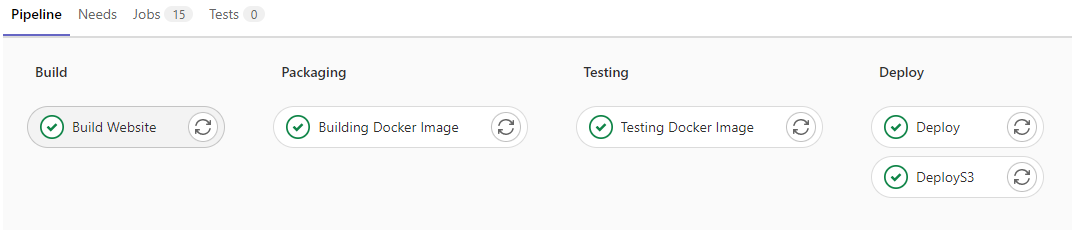

The pipeline file for my frontend was divided into 4 stages with a total of 5 jobs. Each stage can be defined with an image that will be used to execute your script. My pipeline stages consisted of a build, packaging, testing and deployment. The build artifact created would be downloaded to my Deploy stage and it would automatically be deployed to my S3 bucket. Deploying to my EC2 instance was a bit trickier and this took me a considerable amount of time to get it working. This document on Gitlab came in extremely handy. A script on my EC2 instance would be run to basically stop the current containers everytime a new deploy stage was initiated and the script would provision two new containers with the latest image that would be uploaded to my container registry.

Some of the practices I learnt were to use official and verified images, using images that were smaller in size so your pipeline execution times would be lowered. Using environment variables wherever you can in your pipeline structure is recommended. Gitlab also has a feature called predefined variables which can be used in your pipeline to reference variables native to Gitlab such as project Id, authentication variables to authenticate into Gitlab and so on. There's a huge list of them and it's definitely a good practice to incorporate them. I learnt how to install the Gitlab runner service as well and use my own pc as a runner for some specific jobs which required deployment. Reading through the documentation in Gitlab, I learnt a lot of things, also referred to online tutorials and finally was happy with the implemetation of my pipeline. There's still definitely a lot of improvements I could come up for the pipeline, but it does the job decently and I'm happy with the execution.

CI/CD (Backend)

The CI/CD process for my backend was to mainly provision the serverless infrastructure and so this pipeline was a little simpler to setup. Once my SAM template was defined and locally tested, I would initiate the pipeline. I decided to create two pipeline stages, with the first one running both build and test jobs. I opted to create a custom image with python, node, docker, aws cli and awssamcli installed. Since my image contained both python and node, the test jobs that I wrote would execute properly without much trouble. SAM local commands are little trickier to pull off. I assume there's some complexities with trying to use SAM local commands in a container and while solutions do exist, it definitely was hard and a little out of scope for this project. Besides, unittests integrated into your pipeline provide almost all the testing needed to tick all the boxes. There were some difficulties in trying to grant jest some permissions to be able to execute the testing, and with some modification, that was solved as well. After testing, all that was left was to deploy. Pretty similar to the frontend, but handling the crucial infrastructure and testing, so definitely just as important.

The End

And with that, my project has come to an end (not really but for the sake of this blog, yes). If you made it this far, congratulations! since as the title suggests, this is the end! I applaud your perseverance in going through potentially mundane blocks of text just to read my experience on working with my project and hopefully there was something of value you could take away from this. By no means is my project perfect and I understand that, I always consider it to be something that can always be improved upon. Future plans for this project would be to rework the architecture slightly to accomodate for possible incoming application deployments in my instance and also probably incorporate tools such as Kubernetes to manage my containers. Prometheus and grafana are also great tools that could be used in order to monitor the applications and there are endless possibilities in how this project can be modified. It has honestly taught me so many things and working with them hands on was the absolute best. I'd like to thank the author of this challenge for providing a great way to transforming theory knowledge into something practical. I will definitely be improving this project further and possibly update this write up whenever I can.
